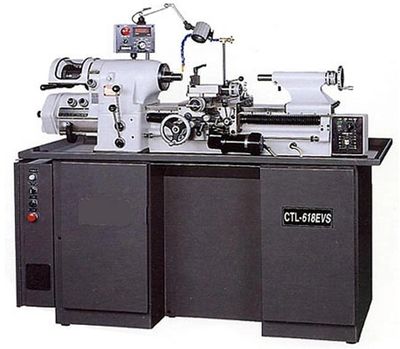

Microcut CTL-618EVS Toolroom Lathe


FEATURES

• 3HP infinitely variable frequency motor w/Yaskawa inverter.

• Spindle speeds can instantly be set from 0 to 4000 RPM with digital display while spindle is running.

• Slideways are hardened and ground with Turcite-B for wear resistance.

• Spindle mounted on high precision preloaded angular contact ball bearings eliminating radial and end play.

• Fast, single movement lever collet chucking.

• Quick change gear-box for easy precision threading.

• Auto thread length control with fine adjustable stops provide accurate threading without thread relief.

• Quick action toolpost slide for threading is instantly cleared from the work for a carriage return.

• Dual range inch/metric quick change gearbox and dials.


(see specifications below)

TRAK TRL 14" Lathe


FEATURES

• 14" swing

• 40" distance between centers

• 1.56” spindle through hole

• 5 HP spindle motor, 12-speeds

• American made, built-in digital readout (DRO) can automatically move both axes

• Quickly and easily set up tools through graphical interface

• Input the profile to be cut and the DRO will clear the excess stock for you

• DC Servo motors with 280 in-oz. continuous torque

• Precision ballscrews for smooth & precise control

• Geared headstock for highest torque thru full spindle speed range

• Electronic handwheels with selectable fine/coarse movement

• Modular design to simplify service and maximize uptime


 (see specifications below)

Kent (USA) ML 17" Lathes


FEATURES

• 17" swing

• 44" & 57" distance between centers

• 3.13” spindle through hole

• 7.5 HP spindle motor, 12-speeds

• Solid full length cast base w/front loading chip tray for easier cleaning

• Adjustable over-load feed clutches

• Quick reversal feed from apron

• Full-length safety foot brake

• Spindle jog button control

• One-shot lubrication for apron, carriage & bedways

• Multi-position adjustable feed position stops

• Dual inch/metric tailstock quill w/knockout tang

• Heavy duty two speed tailstock

• Dual inch/metric dials w/quick-change sleeve


 (see specifications below)

Microcut SV 20" & 22" Lathes


FEATURES

• 20" & 22" swings

• 40", 60", 80" & 120" distance between centers

• Large 4.13” spindle bore.

• Inverter driven 15HP motor with infinitely variable spindle speeds in three speed ranges for maximum torque.

• Heavy duty casting with wide 13.8” bed ways.

• Two speed tailstock

• Full length foot brake for maximum safety.

• Chip trays on wheels for easy cleaning.


 (see specifications below)

Microcut ACH 22" & 26" Lathes


FEATURES

• 22" & 26" swings

• 60", 90", 120" & 160" distance between centers

• Large 4-1/8” spindle bore.

• 15HP motor

• Heavy duty casting with wide 15-3/4” bed ways.

• One piece cast base for maximum rigidity

• Longitudinal rapid feed on 90”, 120”, 160” models

• Two speed tailstock

• Full length foot brake and splash guard.


 (see specifications below)

Microcut MV 24", 26", 28" & 30" Lathes


FEATURES

• 24", 26", 28" & 30" swings

• 40", 60", 80", 120" & 160" distance between centers

• 4.1” spindle bore with large 6.1” option.

• 20HP motor with 30HP option.

• Inverter driven main motor with infinitely variable spindle speeds in three speed ranges for maximum torque.

• Heavy duty casting

• Wide 17.7” bed ways and 3 V-ways.

• Longitudinal & cross rapid feed on 80”, 120”, 160” models

• Full length foot brake for maximum safety.

• Full length splash guard


 (see specifications below)

Microcut PT 25" Pipe Turning Lathes


FEATURES

• 25" swing

• 60", 80" & 120" distance between centers

• Extra large 8.9” spindle bore.

• 15HP motor.

• Heavy duty casting

• Wide 21.7” bed ways.

• Two chuck mounts (front and rear of headstock).

• Longitudinal & cross rapid feeds.

• Traveling splash guard.


 (see specifications below)

Microcut BV 32", 40" & 48" Lathes


FEATURES

• 32", 40" & 48" swings

• 47", 87", 126", 158" & 197" distance between centers

• Large 6.1” spindle bore with extra large 10”, 12” & 15” bore options

• Inverter driven 30HP motor with infinitely variable spindle speeds in four speed ranges for maximum torque.

• Heavy duty casting with wide 22” bed ways (3 V-ways, 1 flat)

• Longitudinal & cross slide rapid feed

• Two speed tailstock


 (see specifications below)
